Odyssey7Q and Canon 4K Cinema RAW

AN IDEAL MATCH FOR BEAUTIFUL 4K IMAGES IN A SMALL PACKAGE

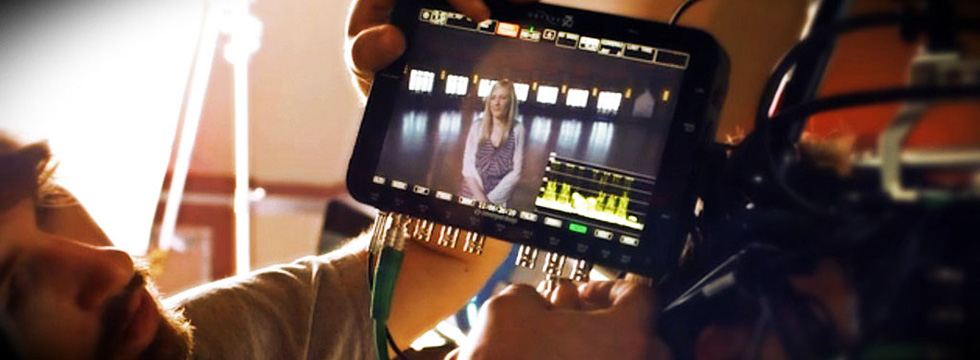

The Canon C500 RAW recording option will deBayer the RAW data and convert it to a 1920x1080 video signal for viewing on the Odyssey7Q’s OLED panel as well as output over the Odyssey7Q’s SDI and HDMI ports. The Odyssey7Q will also playback recorded Canon C500 RAW files. The Odyssey7Q LUT control allows switching between a Canon C-log and REC709 image.

The Canon C500 camera can output Canon RAW in 4096x2160 (4K) or 3840x2160 (Quad HD). Frame rates in either mode are up to 60p. Canon RAW is recorded by the Odyssey7Q in the native 10-bit .RMF files and is readable in any post program capable of reading Canon RAW. The C500 can also shoot a “Half RAW” format of 4096x1080 up to 120p, which the Odyssey7Q Canon record option will support in a future update. C500 can also output 2K or HD 12-bit RGB 4:4:4 video. The Canon C500 4K RAW record option is not required for this as the Odyssey7Q can record these formats in uncompressed video DPX files. A compressed recording solution will be made added in a future update.

The Canon C500 4K Raw record option is available for Odyssey7Q, and is sold only via this website.


Future updates will enable recording in compressed 4:4:4 HD video, compressed 4K video. amd enable recording in a similar compressed 2K video format at some frame rates.



  • SUPPORTED FORMATS
  • RECORD TIMES
  • VIDEO

Supports Canon C500 4K Cinema Raw, recorded as .rmf files.



4K RAW (4096x2160) frame rates: 23.98, 24, 25, 29.97, 50*, 59.94*



2K/1080p 12-bit support: 23.98, 24, 25, 29.97 & 10-bit



Future firmware updates will support 4K “Half RAW”, “slow & Fast” mode, and other C500 formats.



NOTE: CANON RAW 50-60p requires two SSDs to simultaneously record.



Recording Format 24p 25p 30p 50p 60p 100p 120p
Canon C500 4K & QHD 62 60 50 30 25 30 25
Maximum Record Times to Two 512GB SSDs
